Lightning protection for oil and gas sites and hazardous facilities

How an explosive atmosphere lifts the loss factors and the protection level, and why bonding, separation distance and surge protection carry the result on a hazardous site.

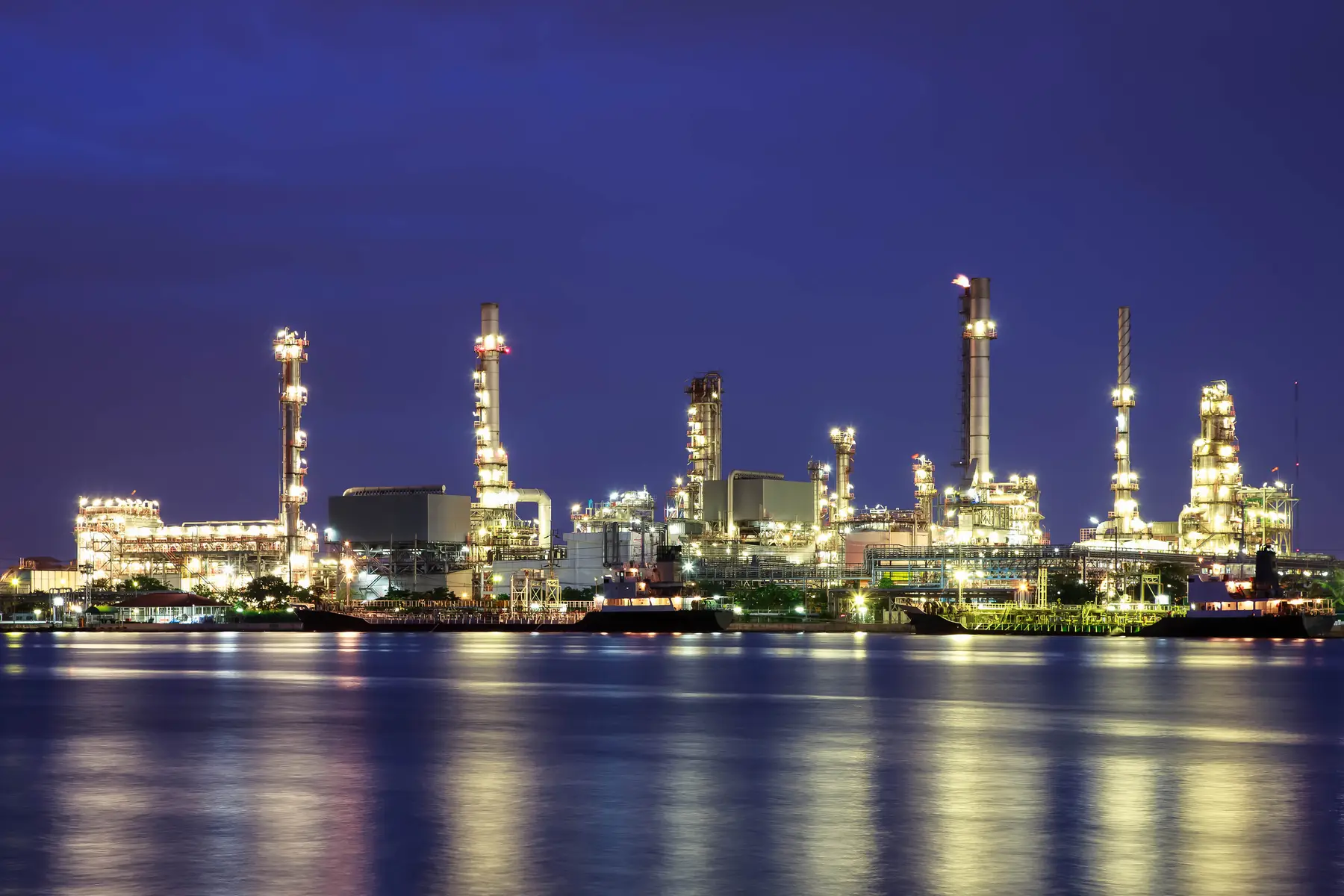

An oil refinery at twilight, where a flammable atmosphere makes a lightning strike a high-consequence event

On a site that holds a flammable or explosive atmosphere, a single spark is the difference between a controlled strike and a fire or an explosion.

Lightning is one of the few external events that can put enough energy into a structure to ignite a vapour cloud, a tank vent or a process release, and it can do it through a direct strike, a side flash, or simply a difference in potential between two pieces of metal that were never bonded together. That is why an IEC 62305 assessment of an oil, gas or other hazardous facility is built around keeping any spark away from the explosive atmosphere, not just around protecting the structure that contains it.

The standard and its method do not change for a hazardous site; what changes is the weight of the consequence. The presence of an explosive atmosphere lifts the loss attached to physical damage and to dangerous sparking, pushes the computed risk up, and usually calls for a more demanding protection level. The work that decides the result is the equipotential bonding, the separation distance, and the surge protection on the services that cross into the hazardous zones. This guide explains why an explosive atmosphere changes everything, how it raises the loss factors and the protection level, why bonding and separation carry the assessment, how tanks, vents and flare stacks are handled, and how IEC 62305 sits alongside the hazardous-area frameworks.

What is different

Why an explosive atmosphere changes everything

The same IEC 62305 method applies, but three things about a hazardous facility move the assessment away from the ordinary-building case and put ignition, not the building, at the centre of it.

A spark is the whole problem

Where there is a flammable atmosphere, the danger is not the strike current itself but any spark it produces. A direct strike, a side flash, or a potential difference across an unbonded gap can ignite a fire or an explosion, so the protection is aimed at preventing the spark, everywhere a release could occur.

The consequence is severe

A strike that would scorch an ordinary roof can take the whole inventory of a tank or a process unit if it finds an ignition point. That raises the loss the assessment attaches to a dangerous event, which lifts the computed risk and usually demands a stronger protection level than a non-hazardous building of the same size.

Bonding leads the design

Tanks, pipework, steel, the protection system and the earthing network all have to be tied into one equipotential system so a strike cannot open a gap for a spark. Where bonding is not possible, a separation distance has to keep the parts far enough apart that no spark can jump. This is the core of the protection, not a detail.

How the risk shifts

Why the loss factors and the protection level rise

The IEC 62305 risk method builds each risk by multiplying three things: how often a dangerous event occurs, how likely that event is to cause a given type of damage, and how much is lost when the damage happens. For most buildings the loss attached to a strike is modest, because the worst likely outcome is localised fire or some failed equipment. A flammable or explosive atmosphere changes the third term completely. A strike that finds an ignition point can destroy a tank, a process unit or worse, so the loss the standard attaches to physical damage and to dangerous sparking is far higher where there is a risk of explosion.

That higher loss pulls the computed risk up. Because the result has to be brought below the same tolerable level as any other structure, a much larger reduction in risk is needed, and the way the standard delivers it is a more demanding protection level. A higher protection level means a more capable lightning protection system, intercepting a wider range of strikes, together with tighter bonding and separation and coordinated surge protection on the services. The exact level still comes out of the assessment rather than from a blanket rule, but for a structure with a genuine risk of explosion the answer rarely sits at the lenient end.

New to how R and the frequency of damage are built, and how a protection level is chosen? The IEC 62305-2 risk method sets out how each is assembled from its components, and what is IEC 62305 covers the damage and loss model the risks rest on.


The central concern

Bonding, separation distance and dangerous sparking

On a hazardous site the protection design is mostly a campaign against one thing: dangerous sparking. When a strike drives a current through the structure, parts of the metalwork rise to different voltages for a moment, and if two parts at different voltages sit close together a spark can jump the gap between them. On an ordinary building that spark is harmless. Near a zone that can hold an explosive atmosphere it is a potential ignition source, so the whole physical-protection scheme is shaped to make sure no such spark can occur where it would matter.

Equipotential bonding is the first answer. Tying tanks, pipework, structural steel, the lightning protection system and the earthing network into a single equipotential system means a strike lifts all of them together, with no voltage difference between them and therefore no gap for a spark to cross. Bonding is what turns a collection of separate metal parts into one body that a strike cannot spark across.

Separation distance handles the parts that cannot be bonded. Where a metal item must stay electrically separate from the protection system, the design keeps enough distance between them that the voltage a strike produces cannot bridge the gap. Getting that distance right, given the geometry and the routing of the strike current, is one of the careful calculations a hazardous-site assessment turns on. IEC 62305-3 carries specific provisions for structures with a risk of explosion that govern how bonding and separation are applied around an explosive atmosphere, and the risk method credits a sound bonding and separation scheme by lowering the probability that a strike causes dangerous sparking.

For how the earthing and bonding network is built and why it underpins everything else, see earthing and bonding under IEC 62305.

The assets at risk

Tanks, vents, flare stacks and process structures

A hazardous site is not one box but a collection of very different structures, much like a renewable energy site spread across a wide footprint, and each presents its own exposure and its own ignition risk that the assessment has to treat on its own terms.

Storage tanks

A metal tank can often serve as its own air termination and down conductor when its shell thickness, joints and bonding meet the requirements, so the strike current flows safely through the shell. The care goes to the vents and any point where a flammable mixture can escape, because that is where an ignition would do the most harm. In the United States, see how NFPA 780 protects flammable liquid tanks.

Vents and flare stacks

Tall, exposed, and deliberately releasing combustible gas, these are high-priority interception points. The assessment looks closely at how a strike is caught and led to ground away from the release point, and at the bonding that keeps any spark away from the gas at the tip.

Process structures

Reactors, columns, pipe racks and their dense instrumentation carry a great deal of metalwork close together, all of which has to be brought into the bonding scheme so a strike cannot open a potential difference anywhere among it.

Hazardous zones

The areas classified as able to hold an explosive atmosphere are where every spark matters most. The protection design steps the strike environment and the bonding scheme around these zones so the highest care lands exactly where the ignition consequence is greatest.

One spark is enough

Where the atmosphere is flammable, the consequence of a strike is measured in lives, not repairs.

In context

IEC 62305 alongside the hazardous-area frameworks

A hazardous facility is governed by more than one framework at once, and it helps to be clear about which does what. The hazardous-area classification, for example the IEC 60079 series, divides the site into zones by how likely an explosive atmosphere is to be present and sets out what the equipment installed in each zone must be able to withstand. It governs the equipment and the zoning. IEC 62305 sits alongside it and governs the lightning threat to those zones: how often a strike could cause a dangerous event, how likely that event is to ignite the atmosphere, and which protection measures bring the risk below the tolerable level.

The two frameworks meet at the boundary. A surge protective device fitted on a line entering a classified zone, or a bonding connection made inside one, has to satisfy both the IEC 62305 requirement that it controls the lightning threat and the hazardous-area requirement that it does not become an ignition source itself. IEC 62305-3 carries specific provisions for structures with a risk of explosion precisely so the lightning protection design lines up with the area classification rather than working against it. The result is one coherent scheme, not two competing ones.


United States and Australia

Under NFPA 780 and AS 1768

Both national standards give oil, gas and explosives sites rules of their own, on top of the general design rules. They use different words for the same idea. NFPA 780 speaks of a hazardous (classified) location, graded by Class and Division. AS 1768 speaks of a hazardous area, divided into Zones 0, 1 and 2 for gas and vapour and Zones 20, 21 and 22 for dust under AS/NZS 60079.10.1 and 60079.10.2 (J.1, J.3).

NFPA 780-2026 Chapter 7 applies to any structure that holds flammable gas or vapor, or a liquid that gives off flammable vapor (7.1.1), though not to nonmetallic tanks, which it sends to Annex N (7.1.2). Its first line of defence is keeping vapor away from places where a strike, an upward streamer, LEMP or secondary arcing could ignite it: openings that release vapor are closed or flame-protected, and hatches, vent valves and roof seals are kept working (7.2.1). A metal structure that is electrically continuous, tightly sealed and has walls no thinner than 3/16 in. (4.8 mm) counts as protecting itself (7.2.2). Anything else follows Section 7.3:

  • a zone of protection drawn with the striking distance capped at 100 ft (30 m) (7.3.2);
  • strike termination devices placed with the risk of sparks at the attachment point in mind (7.3.3.2);
  • down conductors run outside the classified area wherever practicable (7.3.4.2);
  • bonding beyond the Chapter 4 minimum, so nothing melts or sprays except where the strike attaches (7.3.5);
  • surge protection outside the classified area when practicable, and inside it only in an enclosure identified for that Class and Division (7.3.6.2, 7.3.6.3);
  • a ground loop conductor or ground ring electrode, unless the structure's perimeter is 200 ft (60 m) or less (7.3.7.1, 7.3.7.2).

Process plant that is not storage must meet Section 7.3 in full unless a lightning risk assessment justifies doing otherwise (7.4.1). On tank batteries, flare stacks, separators and heater treaters outside a zone of protection must be protected, and the metalwork, piping and grounding are tied together to equalize ground-level potential (7.8.3, 7.8.4).

NFPA 780-2026 Chapter 8 covers structures housing explosives. It does not apply to Hazard Division 1.4 materials, to a net explosives weight no greater than 25 lb (11.3 kg), or where a risk assessment justifies leaving a structure out (8.1.1). Protection uses a 100 ft (30 m) striking distance (8.2.1) and takes one or more of four forms: a metallic cage, masts, overhead wires or an integral system (8.3). A ground ring electrode is required, with exceptions for small structures (8.4.1). Every power, signal, data and communications line entering or leaving needs surge protection, and power and metallic communications lines must arrive underground in shielded cable or metal conduit for the last 50 ft (15 m) (8.6, 8.6.1). Visual inspection is due at intervals of 7 months or less, an electrical test at least every 14 months, and no bonded object may measure more than 200 milliohms (8.9.6, 8.9.7, 8.9.7.1).

In NFPA's informative Annex L, a building holding explosive or flammable materials is one of the cases where protection deserves serious thought whatever the numbers say (L.1.1), and hazardous material sites, fuel refineries and natural gas facilities are critical facilities that should have protection or a detailed assessment (L.5.3.1, L.5.3.2). In the detailed method a risk of explosion adds the four internal-system failure components (RZ, RW, RM and RC) to the life risk R1 (L.6.5) and takes the explosion rows of Tables L.6.7.9 and L.6.7.12. More detail is in NFPA 780 flammable liquid tanks and NFPA 780 Annex L.

AS 1768:2021 Appendix J is normative and covers both hazardous areas and explosive substances or articles, though it mixes binding rules with advice. For hazardous areas the rules step up with the zone:

  • Zones 2 and 22: usually nothing extra. Outdoor metal plant that meets the Section 3 thickness and material rules needs no air terminals or downconductors, only earthing to Section 3 (J.3.1).
  • Zones 1 and 21: the Zone 2 rules, plus SPDs across insulating joints in piping, such as cathodic protection breaks. Any further protection is judged case by case (J.3.2).
  • Zones 0 and 20: the Zone 1 rules, plus closed metal containers at the Table 3.3 wall thickness wherever a strike could land, and air terminals where the wall is thinner (J.3.3).

Plant on a shared raised concrete plinth must be bonded to a common earth connection (J.2.2). A suspended air terminal network keeps its poles at least 2 m from the structure and its wire at least 2 m above the highest point, such as a vent, at maximum sag, rising to 5 m of clearance above vents that blow out dust or vapour from explosive substances by forced draft (J.2.4). Surge protection is advised where the plant must keep running, but a note makes clear it is not there to prevent ignition (J.2.5). Testing follows Section 5, at intervals chosen for the worst conditions the site sees (J.4).

For explosives, J.5.1 requires LPL I, a 20 m rolling sphere, whatever the risk figures say, with at least 2 m between the structure and any separate mast or air terminal. Nearby structures that could add fire, explosion or projectile hazards within 50 m or 30 m are protected too. J.5.2 makes surge protection part of the system, installed to Appendix F with the SPDs outside the place where the material is held. The mines guide covers magazines in more depth, and Lumex™ for AS 1768 explains how the J.5.1 and J.5.2 floor is applied to an explosives store.

Tanks side by side

Lightning protection for storage tanks under NFPA 780 and AS 1768

Both standards treat a well built steel tank as largely able to protect itself, and both single out the same weak points. The table summarises; read the clause before you design from it, and buy each standard from its publisher.

Tank questionNFPA 780-2026AS 1768:2021
When is a metal tank treated as protecting itself?Electrically continuous, tightly sealed, 3/16 in. (4.8 mm) or thicker (7.2.2); sealed pressure vessels that are grounded (7.5.1)Metal plant meeting the Section 3 thickness and material rules needs no air terminals in Zones 2 and 22 (J.3.1); shell and roof thick enough to avoid hot spots or holes, roof seams gas-tight (J.4.1.1.1(f), (g))
Vents and openingsClosed or protected against flame entry (7.2.1.3)Normally closed or fitted with flame arrestors (J.4.1.1.1(e))
Nonmetallic or wooden roofNot self-protecting; strike termination devices bonded to the shell (7.6.3)Not self-protecting; air terminals placed using LPL I (J.4.1.1.2)
External floating roofShunts or metallic shoe seals and bypass conductors (7.6.2)Multiple roof-to-shell connections, or overhead earth wires (J.4.1.1.1(h))
EarthingOne of four routes, such as piping bonded at two or more points or two or more grounding electrodes (7.3.7.3)Shell earthed to Section 3, one connection per 20 m of perimeter, attachment points 500 mm or more above finished level (J.4.1.1.1(a) to (c))
PipingGround-level potential equalization across a tank battery (7.8.4)Every pipe bonded to the tank where it enters (J.4.1.1.1(d))
Nonmetallic tankOutside Chapter 7; see informative Annex N (7.1.2)No separate rule in Appendix J
Protection

The measures that move the result

For a hazardous site the protection that matters is mostly about preventing ignition. The assessment decides which measures a facility needs and where, so the care lands on the structures and zones that carry the consequence.

A thorough bonding network

An equipotential system tying tanks, pipework, steel, the protection system and the earthing network together is what stops a strike from opening a dangerous potential difference. On a hazardous site this is usually the single most important set of measures, because dangerous sparking is the main ignition path.

Separation distance where bonding cannot reach

For metalwork that must stay electrically separate, the design holds enough distance that the voltage a strike produces cannot bridge the gap. The separation calculation is one of the things a hazardous-site assessment turns on, and it has to be checked against the real geometry.

Coordinated SPDs on incoming services

Power, control and instrumentation lines crossing into a hazardous zone get surge protective devices sized for the chosen protection level and installed to respect the bonding scheme, so a strike-induced surge is clamped without the device itself introducing a spark risk.

A protection level matched to the consequence

Because the loss from an explosion is so high, the assessment usually calls for a strong protection level. The numbers, not a blanket rule, set how capable the interception, bonding and separation have to be, so the effort lands where the explosion risk is real.

Keeping it valid

Why inspection and maintenance are stricter here

An IEC 62305 assessment is only true while the installed protection stays in the condition it was assessed in, and on a hazardous facility that condition is harder to keep and more costly to lose. A loose bond, a corroded conductor or a separation distance closed up by a later modification would be a minor defect on an office building. On a process unit any one of them can become an ignition source, so the consequence of a lapsed inspection is far higher.

The environment works against the protection too. Outdoor plant on an oil or gas site sits in corrosive, vibrating, weather-exposed conditions that degrade connections faster than an indoor installation. For both reasons the inspection intervals are shorter and the checks more thorough, with particular attention to bonding continuity, the separation distances around the explosive-atmosphere zones, and the condition of conductors and connections that the whole spark-prevention scheme depends on. The maintenance regime is part of what the assessment assumes, not an afterthought to it.

For how the lightning protection zones step the strike environment down as it moves inward, see lightning protection zones (LPZ).


How Lumex™ handles it

A hazardous site, modelled to the clause

Lumex™ models a hazardous facility as its structures, zones, incoming services and protection measures, applies the higher loss factors that the risk of explosion calls for, and runs the IEC 62305-2 method (2024 edition) across them. It shows how the bonding, the separation distance, the chosen protection level and coordinated surge protection bring the risk below the tolerable level, and it lets an engineer adjust the structures and services and watch the risk move, which is exactly the part of the picture a high-consequence site lives or dies on. Every figure traces back to the clause behind it, so an operator, auditor or insurer can follow the reasoning rather than take a single number on trust.

New to the standard? Start with what is IEC 62305, then see the Lumex™ platform for how a facility is assessed end to end.

FAQs

Questions answered

Why is lightning protection critical for oil, gas and hazardous facilities?

Because these sites hold flammable or explosive atmospheres, and lightning is one of the few external events that can deliver enough energy to ignite one. A direct strike, a side flash, or a difference in potential between two unbonded metal parts can produce a spark in a place where a spark means a fire or an explosion. The consequence of a single dangerous event is therefore far higher than for an ordinary building, so an IEC 62305 risk assessment for one of these facilities is built around keeping any spark away from the explosive atmosphere, not just around protecting the structure.

How does an explosive atmosphere change the IEC 62305 risk assessment?

It raises the consequence side of the calculation. The risk method multiplies how often a dangerous event happens by how likely it is to cause damage and by how much is lost when it does. A flammable atmosphere lifts that loss sharply, because a strike that would scorch an ordinary roof can ignite a tank or a process unit. The higher loss pulls the computed risk up, so the result usually calls for a more demanding protection level than a comparable ordinary building, with tighter bonding, separation and surge protection. The exact level still comes from the assessment, not a blanket rule.

What is dangerous sparking and why does it dominate hazardous-site protection?

Dangerous sparking is an electrical discharge across a gap between two conductive parts when a strike drives them to different potentials. On most buildings a small spark is harmless. Inside or near a zone with an explosive atmosphere it can be the ignition source for a fire or explosion, so the entire physical-protection design is aimed at preventing it. That is done by bonding metal parts together so no dangerous potential difference can build, and by keeping enough separation distance between the lightning protection system and other metalwork that no spark can jump where bonding is not possible.

Why is equipotential bonding so important on oil and gas sites?

Because bonding is what stops a strike from creating a potential difference that could spark across to a flammable atmosphere. Tying tanks, pipework, structural steel, the lightning protection system and the earthing network into one equipotential system means a strike raises everything together, with no gap for a spark to cross. Where two parts cannot be bonded, the design has to maintain a separation distance large enough that the voltage a strike produces cannot bridge the gap. On a hazardous site this bonding and separation work is the heart of the protection, not a finishing detail.

How are storage tanks, vents and flare stacks protected from lightning?

A sealed, electrically continuous metal tank with a thick enough shell counts as protecting itself under NFPA 780-2026 Section 7.2.2, and AS 1768:2021 Clause J.3.1 lets metal plant in Zones 2 and 22 skip air terminals. Under AS the shell must still be earthed (J.4.1.1.1(a)), and vents and openings must be closed or fitted with flame protection (NFPA 7.2.1.3, AS J.4.1.1.1). A metal tank with a nonmetallic roof is not self-protecting under either standard (NFPA 7.6.3, AS J.4.1.1.2). Flare stacks outside a zone of protection need protection under NFPA 7.8.3.

Which standards cover lightning protection for oil and gas sites?

It depends on the market. IEC 62305-2 carries the higher loss factors for a risk of explosion and IEC 62305-3 has provisions for structures with a risk of explosion. In the United States, NFPA 780-2026 Chapter 7 covers structures holding flammable vapors, gases or liquids, and Chapter 8 covers explosives. In Australia, AS 1768:2021 Appendix J, which is normative, covers hazardous areas and explosives. Each is used alongside the hazardous-area classification, which governs the equipment and the zones.

How is surge protection chosen for incoming services into a hazardous zone?

Power, control and instrumentation lines entering a hazardous area carry surges in, so they get coordinated surge protective devices that clamp a strike-induced surge before it reaches equipment. The device must not become an ignition source itself, so where it sits matters. NFPA 780-2026 puts SPDs outside the hazardous (classified) location where practicable, and in an enclosure identified for that location when one must go inside (7.3.6.2, 7.3.6.3). AS 1768:2021 notes that surge protection is not meant to stop ignition (J.2.5).

Why are inspection and maintenance stricter on hazardous facilities?

Because the consequence of a failed bond or a corroded conductor is so much higher here. A loose connection that would be a minor defect on an office building can become an ignition source on a process unit, and the corrosive, vibrating outdoor environment of an oil or gas site degrades connections faster. Inspection intervals are therefore shorter and the checks more thorough, with particular attention to bonding continuity, separation distances and the condition of conductors around the explosive-atmosphere zones. The assessment only holds while the installed protection stays in the condition it was assessed in.

Does Lumex™ handle lightning risk assessments for oil, gas and hazardous sites?

Yes, under IEC 62305-2:2024. Lumex™ models a hazardous facility as its structures, zones, incoming services and protection measures, and applies the standard's explosion rules, such as holding r_p at 1 in a zone with a risk of explosion unless you record the exception the standard allows. It shows how bonding, separation distance, the protection level and coordinated surge protection bring the risk below the tolerable level, with every figure traced to its clause. It does not design the protection system or certify the site.

What Lumex™ does, and what stays with you

Lumex™ computes the method of the standard you choose, IEC 62305-2:2024, AS 1768:2021 or NFPA 780-2026, and shows the working. It does not certify a structure. You may not issue or submit a Lumex™ output until a competent person, qualified where the structure is located, has reviewed the inputs and the result and signed it.

The tolerable risk in IEC 62305-2 is not a fixed constant. Clause 7.3 NOTE 1 gives RT = 1 × 10⁻⁵ per year as a representative value of tolerable risk and adds that another value may be set once the case has been investigated in detail. The standard's introduction then lets national or local regulations fix RT, the tolerable frequency of damage FT, and the Annex A, B, C and E calculation rules and parameter values. Every IEC 62305-2 assessment in Lumex™ states the jurisdiction it was computed under and the values that applied.
